Cobalt in PDB 9ml0: Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework

Protein crystallography data

The structure of Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework, PDB code: 9ml0 was solved by R.M.Richardson-Matthews, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 15.56 / 0.92
Space group P 1 21 1
Cell size a, b, c (Å), α, β, γ (°) 16.206, 46.634, 19.845, 90, 106.2, 90
R / Rfree (%) 13.9 / 16.7

Cobalt Binding Sites:

The binding sites of Cobalt atom in the Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework (pdb code 9ml0). This binding sites where shown within 5.0 Angstroms radius around Cobalt atom.
In total 3 binding sites of Cobalt where determined in the Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework, PDB code: 9ml0:
Jump to Cobalt binding site number: 1; 2; 3;

Cobalt binding site 1 out of 3 in 9ml0

Go back to Cobalt Binding Sites List in 9ml0

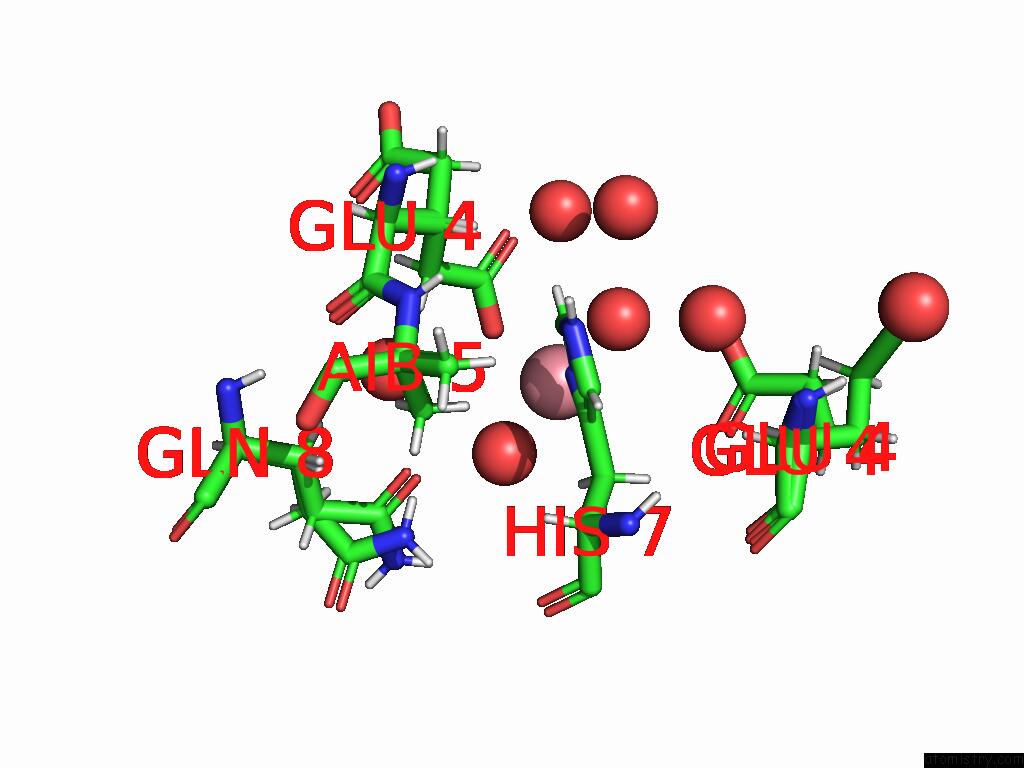

Cobalt binding site 1 out of 3 in the Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework


Mono view

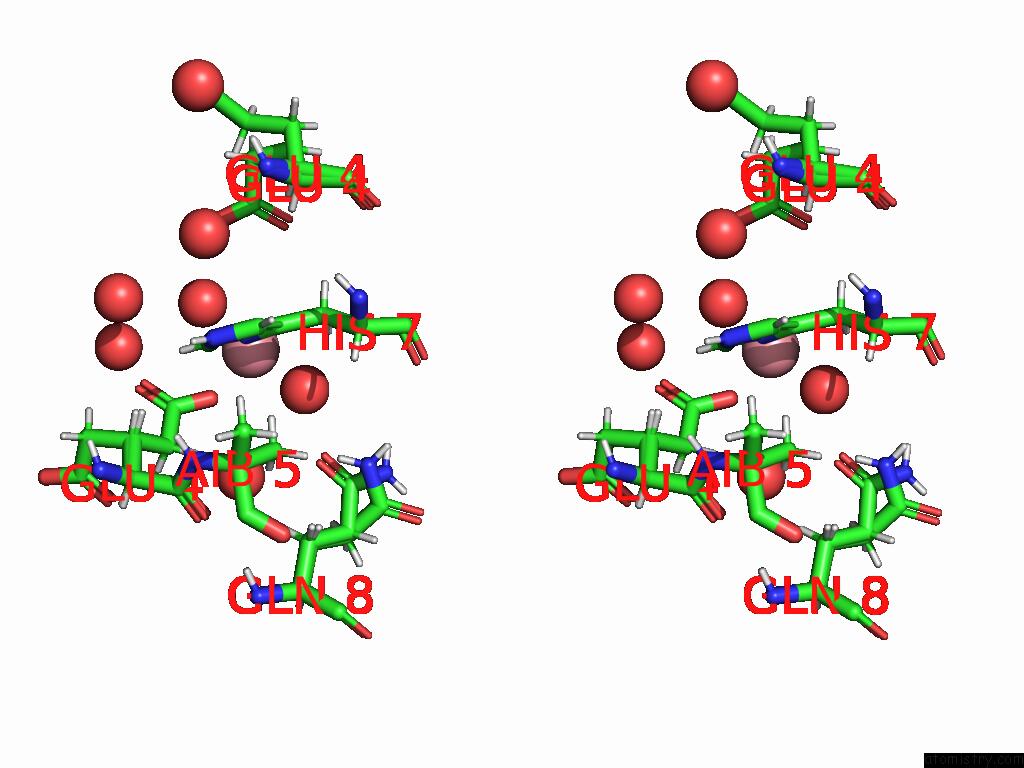

Stereo pair view

A full contact list of Cobalt with other atoms in the Co binding site number 1 of Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Co101

b:7.6
occ:1.00
OE2 C:GLU4 2.1 6.5 0.7
O A:HOH202 2.2 11.7 1.0
ND1 A:HIS7 2.2 6.2 1.0
O C:HOH202 2.2 8.7 1.0
CE1 A:HIS7 3.0 6.6 1.0
HB3 A:HIS7 3.1 6.5 1.0
HE1 A:HIS7 3.1 8.0 1.0
CD C:GLU4 3.1 9.2 0.7
CG A:HIS7 3.2 5.3 1.0
CB A:HIS7 3.6 5.4 1.0
OE1 C:GLU4 3.7 12.2 0.7
HB2 A:HIS7 3.9 6.5 1.0
O C:HOH205 4.1 24.1 1.0
HG2 C:GLU4 4.2 10.1 0.7
OE1 A:GLU4 4.2 9.9 0.6
NE2 A:HIS7 4.2 5.5 1.0
OE2 A:GLU4 4.2 12.6 0.6
CG C:GLU4 4.3 8.4 0.7
CD2 A:HIS7 4.3 5.8 1.0
O A:HOH205 4.4 33.9 0.5
OE1 C:GLN8 4.4 15.1 0.5
O C:HOH208 4.5 34.1 1.0
CD A:GLU4 4.6 9.5 0.6
O C:HOH204 4.7 26.9 1.0
HB3 C:GLU4 4.7 10.4 0.3
HE21 C:GLN8 4.9 21.8 0.5
HG3 C:GLU4 4.9 10.1 0.7
HB11 C:AIB5 4.9 7.8 1.0
HE2 A:HIS7 4.9 6.6 1.0
CA A:HIS7 5.0 6.0 1.0

Cobalt binding site 2 out of 3 in 9ml0

Go back to Cobalt Binding Sites List in 9ml0

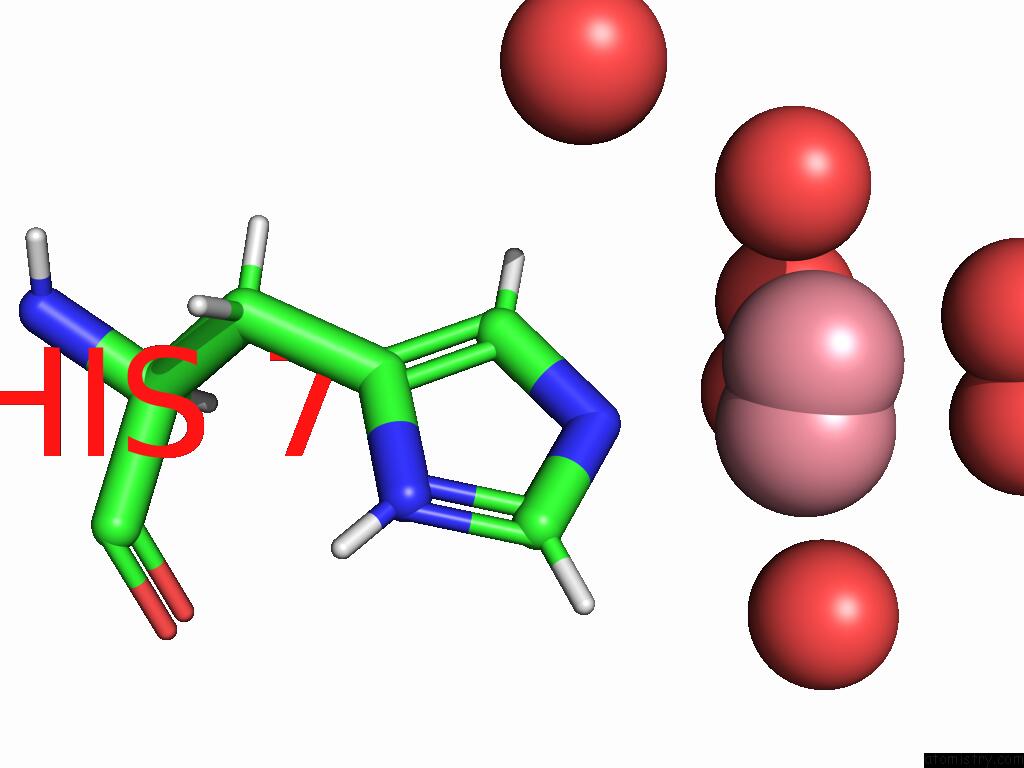

Cobalt binding site 2 out of 3 in the Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework


Mono view


Stereo pair view

A full contact list of Cobalt with other atoms in the Co binding site number 2 of Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Co101

b:6.4
occ:0.41
CO C:CO101 0.0 6.4 0.4
CO C:CO101 0.7 10.6 0.6
O C:HOH213 2.0 13.8 1.0
NE2 C:HIS7 2.1 10.0 1.0
O C:HOH210 2.2 6.3 0.5
O C:HOH216 2.3 7.5 0.4
O C:HOH210 2.3 14.4 0.6
O C:HOH216 2.4 10.6 0.6
O C:HOH212 2.5 13.4 1.0
CE1 C:HIS7 3.0 11.6 1.0
HE1 C:HIS7 3.0 13.9 1.0
CD2 C:HIS7 3.2 8.0 1.0
HD2 C:HIS7 3.5 9.6 1.0
ND1 C:HIS7 4.1 11.1 1.0
CG C:HIS7 4.3 6.5 1.0
O C:HOH215 4.5 25.3 1.0
HD1 C:HIS7 4.9 13.3 1.0

Cobalt binding site 3 out of 3 in 9ml0

Go back to Cobalt Binding Sites List in 9ml0
Cobalt binding site 3 out of 3 in the Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework


Mono view

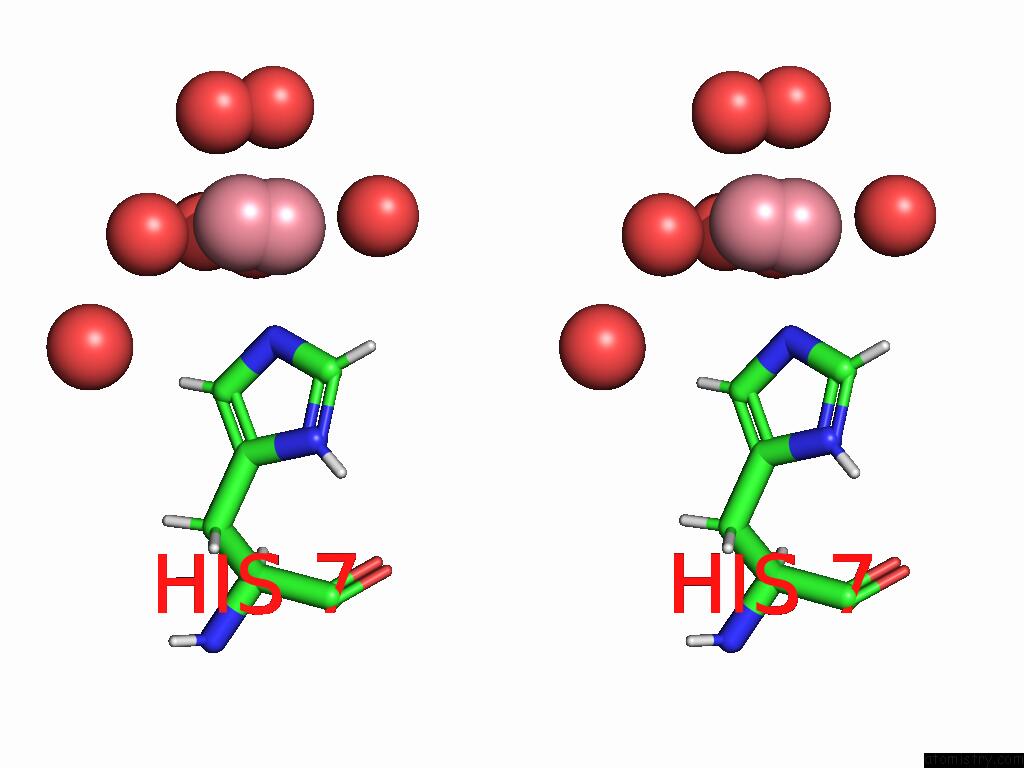

Stereo pair view

A full contact list of Cobalt with other atoms in the Co binding site number 3 of Co-Mahf-9 A8Q Hydrated Metal Alpha-Helix Framework within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Co101

b:10.6
occ:0.59
CO C:CO101 0.0 10.6 0.6
CO C:CO101 0.7 6.4 0.4
O C:HOH212 1.8 13.4 1.0
O C:HOH216 2.1 10.6 0.6
O C:HOH210 2.1 14.4 0.6
NE2 C:HIS7 2.3 10.0 1.0
O C:HOH216 2.3 7.5 0.4
O C:HOH210 2.4 6.3 0.5
O C:HOH213 2.7 13.8 1.0
CD2 C:HIS7 3.2 8.0 1.0
CE1 C:HIS7 3.2 11.6 1.0
HD2 C:HIS7 3.3 9.6 1.0
HE1 C:HIS7 3.4 13.9 1.0
O C:HOH215 4.0 25.3 1.0
ND1 C:HIS7 4.3 11.1 1.0
CG C:HIS7 4.3 6.5 1.0

Reference:

R.Richardson-Matthews, K.Velko, B.Bhunia, S.Ghosh, J.Oktawiec, J.S.Brunzelle, V.T.Dang, A.I.Nguyen. Metal-Alpha-Helix Peptide Frameworks. J.Am.Chem.Soc. 2025.
ISSN: ESSN 1520-5126
PubMed: 40328673
DOI: 10.1021/JACS.5C04078
